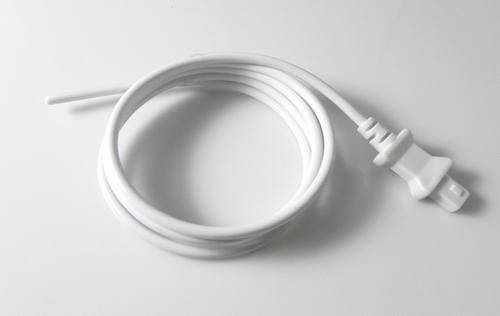

----------Esophageal or Retal Series----------



Features:
¡ö Low cost , Small size
¡ö Proven long term Stability and Reliability
¡ö High Sensitivity and Fast thermal response
¡ö High accuracy and Interchangeability, Thermally Conductive Epoxy coated

Applications:
¡ö Temperature sensing , control and compensation
¡ö Automotive car seat heater control and engine management
¡ö P.C. board mounting for over temperature protection
¡ö General Instrumentation applications

Dimensions:

Specification illustration:
XX

¢Ù
MF

¢Ú
5A-5
——
¢Û
-327

¢Ü
-502

¢Ý
F

¢Þ

Notes£º
¢Ù XIXI Co.
¢Ú NTC thermistor
¢Û Epoxy coated type modle 5A-5
¢Ü B value£¨B25/50¡æ£©  Example: 327-- B 25/50¡æ: 3270
¢Ý Standard resistance value at 25¡æ£¨R25¡æ£©,Example£º502. R25¡æ is 5KΩ
¢Þ R25¡æ interchangeability precision£º
   F£¨±1%£©£»G£¨±2%£©£»H£¨±3%£©£»J£¨±5%£©£»K£¨±10%£©

Product specification:
specification
R25¡æ
£¨KΩ£©
B25/50¡æ
£¨K£©
disspation constant
£¨mW/¡æ£©
time constant
£¨S£©
operation temperature range
£¨¡æ£©
XXMF5A-5 -347-202¡õ
2
3470
0.75-3.0 typical in still air at 25¡æ
1-1.5 typical in liquids
-30¡«125
XXMF5A-5 -327-347-502¡õ
5
3270/3470
XXMF5A-5-347/390/395-103¡õ
10
3470/3900/3950
XXMF5A-5-395-473¡õ
47
3950
XXMF5A-5-395/400-503¡õ
50
3950/4000
XXMF5A-5-405/420-104¡õ
100
4050/4200

Note 1)  Values above are for reference only. B value among 3000-4500K, and R 25¡æ among 0.5KΩ-2 MΩ can be custom designed.
Note 2)  We will produce suitable temperature sensors according to the technical details you provide such as dimension, operating temperature, thermal time constant, precision, etc.
