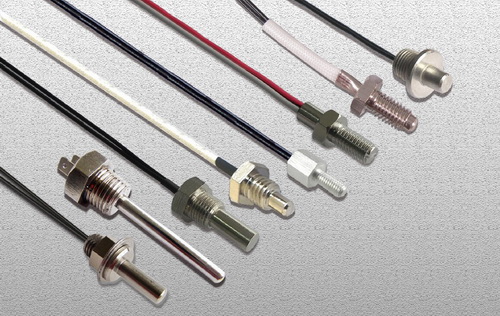

----------MFP-S Series----------



Features:
A glass-encapsulated thermistor element is sealed with epoxy resin
Proven long term Stability and Reliability
To install and fixed by screw thread

Applications:
Hot water boiler tanks
Automobile engines (solid), engine oil (oil), radiators (water)
Soybean milk machine
Power system

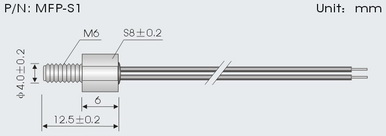

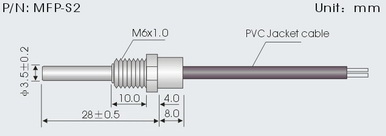

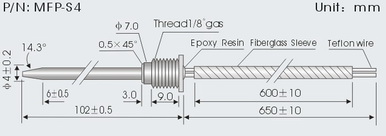

Dimensions:

Specification illustration:
XX

MF

P-S

-327

-502

F

Notes
XIXI Co.
NTC thermistor
Screw thread type modle MFP-S
B valueB25/50棩  Example: 327-- B 25/50: 3270
Standard resistance value at 25棨R25棩,Example502. R25 is 5KΩ
R25 interchangeability precision
   F±1%G±2%H±3%J±5%K±10%

Product specification:
specification
R25
K
B25/50
K
disspation constant
mW/棩
time constant
S
operation temperature range
XXMFP-S -347-202
2
3470
approx. 2.2 typical in still air at 25
10 - 20 typical in stirred water
-20125
XXMFP-S -327-347-502
5
3270/3470
XXMFP-S -347/390/395-103
10
3470/3900/3950
XXMFP-S -395-473
47
3950
XXMFP-S -395/400-503
50
3950/4000
XXMFP-S -405-104
100
4050

Note 1)  Values above are for reference only. B value among 3000-4500K, and R 25 among 0.5KΩ-2 MΩ can be custom designed.
Note 2)  We will produce suitable temperature sensors according to the technical details you provide such as dimension, operating temperature, thermal time constant, precision, etc.
