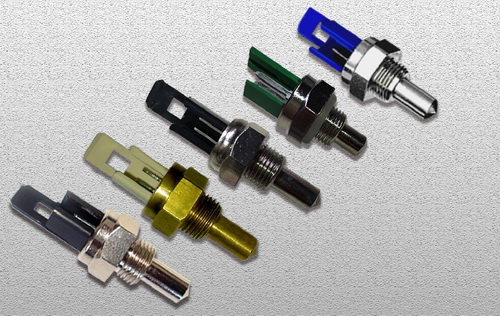

----------MFL Series----------



Features:
Miniature, immersible, and Fast thermal response
Simple screw installation (G1/8" thread)
Housings could be Brass, Stainless steel and plastic
Connectors could be Faston, Lumberg, Molex, Tyco

Applications:
Wall-hanging stove
Measuring the heating water for industrial or household applications
Automobile or motorcycles ,the Electronic fuel injection
Measuring oil / coolant temperature

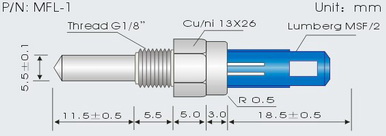

Dimensions:
Specification illustration:
XX

MF

L

-327

-502

F

Notes
XIXI Co.
NTC thermistor
Lumberg connector type modle MFL
B valueB25/50棩  Example: 327-- B 25/50: 3270
Standard resistance value at 25棨R25棩,Example502. R25 is 5KΩ
R25 interchangeability precision
   F±1%G±2%H±3%J±5%K±10%

Product specification:
specification
R25
K
B25/50
K
disspation constant
mW/棩
time constant
S
operation temperature range
XXMFL -347-202
2
3470
approx. 2.2 typical in still air at 25
5 - 7 typical in stirred water
-30125
XXMFL -327-347-502
5
3270/3470
XXMFL -347/390/395-103
10
3470/3900/3950
XXMFL -395-473
47
3950
XXMFL -395/400-503
50
3950/4000
XXMFL -405-104
100
4050

Note 1)  Values above are for reference only. B value among 3000-4500K, and R 25 among 0.5KΩ-2 MΩ can be custom designed.
Note 2)  We will produce suitable temperature sensors according to the technical details you provide such as dimension, operating temperature, thermal time constant, precision, etc.
