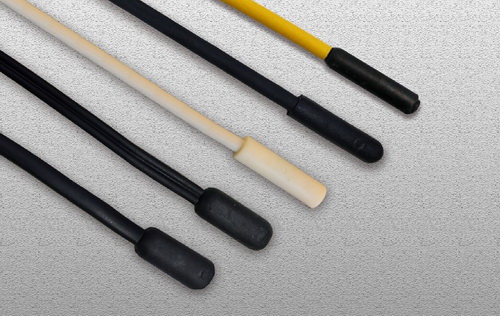

----------MFT-O Series----------



Features:
IP68 Rated
TPE Injection Over-molded probe
Proven long term Stability and Reliability
High Sensitivity and Fast thermal response

Applications:
Air-conditioners (room and outdoor air)
Automobile air conditioners & heaters
Electric water boilers and water heater tanks (surface)
Fan heaters

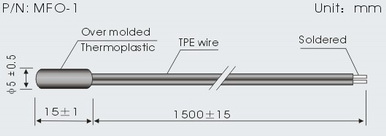

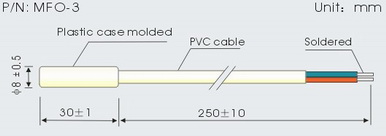

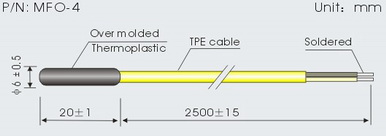

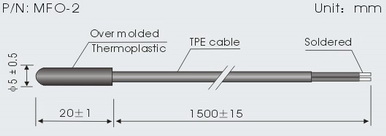

Dimensions:

Specification illustration:
XX

MF

T-O

-327

-502

F

Notes
XIXI Co.
NTC thermistor
Overmolding type modle MFT-O
B valueB25/50棩  Example: 327-- B 25/50: 3270
Standard resistance value at 25棨R25棩,Example502. R25 is 5KΩ
R25 interchangeability precision
   F±1%G±2%H±3%J±5%K±10%

Product specification:
specification
R25
K
B25/50
K
disspation constant
mW/棩
time constant
S
operation temperature range
XXMFT-O -347-202
2
3470
approx. 2.2 typical in still air at 25
5 - 7 typical in stirred water
-30105
XXMFT-O -327-347-502
5
3270/3470
XXMFT-O -347/390/395-103
10
3470/3900/3950
XXMFT-O -395-473
47
3950
XXMFT-O -395/400-503
50
3950/4000
XXMFT-O -405-104
100
4050

Note 1)  Values above are for reference only. B value among 3000-4500K, and R 25 among 0.5KΩ-2 MΩ can be custom designed.
Note 2)  We will produce suitable temperature sensors according to the technical details you provide such as dimension, operating temperature, thermal time constant, precision, etc.
