----------PT-RTD Series----------



Features:

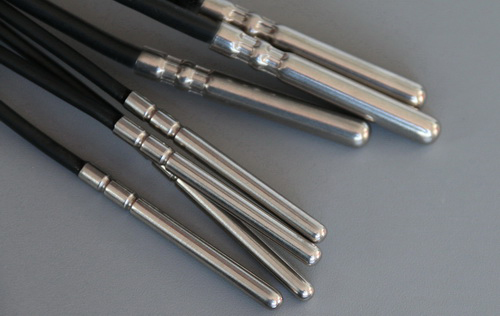

A platinum resistor is built into the various housing
Proven long term Stability and Reliability
Interchangeability and High Sensitivity with High precision

Applications:
White goods, HVAC, and Food sectors
Automotive and Medical
Marine, Energy management and Industrial equipment

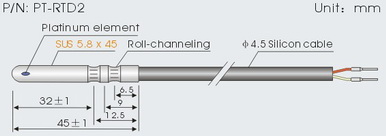

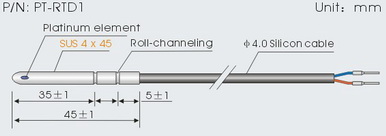

Dimensions:

Specification illustration:
XX

PT

RTD

-1000

A



Notes
XIXI Co.
Platinum resistor
Resistance Temperature Detector
Standard resistance value at 0棨R 0棩,Example1000. R 0 is 1000 Ω
R25 interchangeability precision
  BDIN EN 60751, class BADIN EN 60751, class ACDIN EN 60751, class 1/3 DIN

Product specification:
specification
(according to IEC 751)
R 0
Tolerance
Long-term stability
Temperature coefficient
operation temperature range
XXPT-RTD -100-B
100
DIN EN 60751, class B
max. R0-drift 0.04% after 1000 h at 500°C
TCR = 3850 ppm/K
-70500
XXPT-RTD -100-A
100
DIN EN 60751, class A -50300
XXPT-RTD -100-C
100
DIN EN 60751, class 1/3 DIN 0150
XXPT-RTD -500-B
500
DIN EN 60751, class B -70500
XXPT-RTD -1000-B
1000
DIN EN 60751, class B -70500
XXPT-RTD -1000-A
1000
DIN EN 60751, class A -50300
XXPT-RTD -1000-C 1000 DIN EN 60751, class 1/3 DIN 0150
Note 1)  The measuring point for the nominal resistance is defined at 8 mm from the end of the sensor body.
Note 2)  We will produce suitable temperature sensors according to the technical details you provide such as dimension, operating temperature, wire length, precision, etc.
