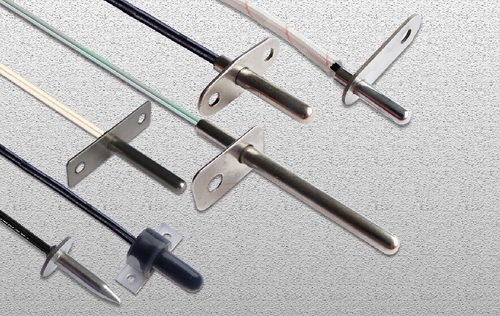

Features:
¡ö Glass-encapsulated thermistor elements which withstand high voltage are available
¡ö Outstanding accuracy and response solution for oven temperature control
¡ö Max. temperature up to 300¡æ (from the tip of protection tube to the flange)
Applications:
¡ö Microwave oven chambers (air & vapor)
¡ö Heaters and air cleaners (inside ambient)
¡ö Vacuum cleaners (solid)
XX — ¢Ù |
MF — ¢Ú |
T-F — ¢Û |
-327 — ¢Ü |
-502 — ¢Ý |
F — ¢Þ |
Notes£º
¢Ù XIXI Co.
¢Ú NTC thermistor
¢Û Epoxy coated type modle MFT-F
¢Ü B value£¨B25/50¡æ£© Example: 327-- B 25/50¡æ: 3270
¢Ý Standard resistance value at 25¡æ£¨R25¡æ£©,Example£º502. R25¡æ is 5KΩ
¢Þ R25¡æ interchangeability precision£º
F£¨±1%£©£»G£¨±2%£©£»H£¨±3%£©£»J£¨±5%£©£»K£¨±10%£©
specification |
R25¡æ £¨KΩ£© |
B25/50¡æ £¨K£© |
disspation constant £¨mW/¡æ£© |
time constant £¨S£© |
operation temperature range
£¨¡æ£© |
XXMFT-F-347-202¡õ |
2 |
3470 | 2.1 - 2.5 typical in still air at 25¡æ |
60 - 100
typical in still air |
-20¡«105
-20¡«200 -20¡«300
|
XXMFT-F-327-347-502¡õ |
5 |
3270/3470 | |||
XXMFT-F-347/390/395-103¡õ |
10 |
3470/3900/3950 | |||
XXMFT-F-395-473¡õ |
47 |
3950 | |||
XXMFT-F-395/400-503¡õ |
50 |
3950/4000 | |||
XXMFT-F-405-104¡õ |
100 |
4050 | |||
Note 2) We will produce suitable temperature sensors according to the technical details you provide such as dimension, operating temperature, thermal time constant, precision, etc.
