----------MFB Series----------



Features:
A radial glass-encapsulated thermistor element is sealed with epoxy resin
Proven long term Stability , Reliability, and high Durability
High Sensitivity and the Fastest thermal response
Covers the whole water temperature range

Applications:
Standard water temperature sensor for home appliances
Water heaters, heat pump water heaters and coffee makers (water)
Bidets (instant inlet water)

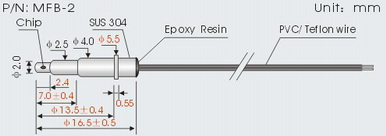

Dimensions:

Specification illustration:
XX

MF

B

-327

-502

F

Notes
XIXI Co.
NTC thermistor
Epoxy coated type modle MFB
B valueB25/50棩  Example: 327-- B 25/50: 3270
Standard resistance value at 25棨R25棩,Example502. R25 is 5KΩ
R25 interchangeability precision
   F±1%G±2%H±3%J±5%K±10%

Product specification:
specification
R25
K
B25/50
K
disspation constant
mW/棩
time constant
S
operation temperature range
XXMFB -347-202
2
3470
1.5 - 4.8 typical in stirred water
0.5 - 1
typical in stirred water
-20125
XXMFB -327-347-502
5
3270/3470
XXMFB -347/390/395-103
10
3470/3900/3950
XXMFB -395-473
47
3950
XXMFB -395/400-503
50
3950/4000
XXMFB -405-104
100
4050

Note 1)  Values above are for reference only. B value among 3000-4500K, and R 25 among 0.5KΩ-2 MΩ can be custom designed.
Note 2)  We will produce suitable temperature sensors according to the technical details you provide such as dimension, operating temperature, thermal time constant, precision, etc.
