----------MFP-C Series----------



Features:
A glass-encapsulated thermistor element is sealed with epoxy resin
Proven long term Stability and Reliability
High Sensitivity and Fast thermal response
Long and flexible leads for special mounting or assembly

Applications:
Air-conditioners (room and outdoor air)
Automobile air conditioners & heaters
Electric water boilers and water heater tanks (surface)
Fan heaters

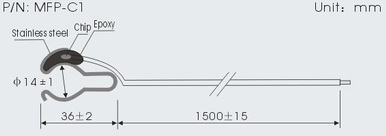

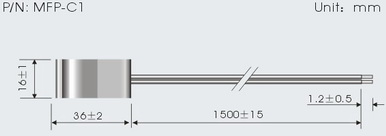

Dimensions:

Specification illustration:
XX

MF

P-C

-327

-502

F

Notes
XIXI Co.
NTC thermistor

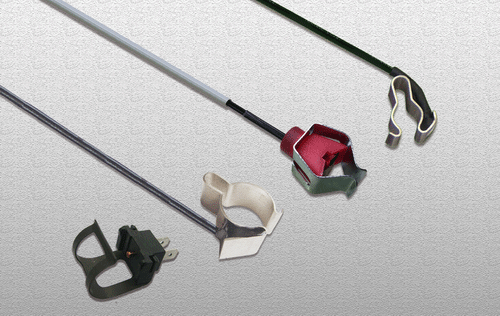

Stainless steel Clamp type modle MFP-C
B valueB25/50棩  Example: 327-- B 25/50: 3270
Standard resistance value at 25棨R25棩,Example502. R25 is 5KΩ
R25 interchangeability precision
   F±1%G±2%H±3%J±5%K±10%

Product specification:
specification
R25
K
B25/50
K
disspation constant
mW/棩
time constant
S
operation temperature range
XXMFP-C -347-202
2
3470
approx. 2.4 typical in still air at 25
20 typical in stirred water
-20105
XXMFP-C -327-347-502
5
3270/3470
XXMFP-C -347/390/395-103
10
3470/3900/3950
XXMFP-C -395-473
47
3950
XXMFP-C -395/400-503
50
3950/4000
XXMFP-C -405-104
100
4050

Note 1)  Values above are for reference only. B value among 3000-4500K, and R 25 among 0.5KΩ-2 MΩ can be custom designed.
Note 2)  We will produce suitable temperature sensors according to the technical details you provide such as dimension, operating temperature, thermal time constant, precision, etc.
