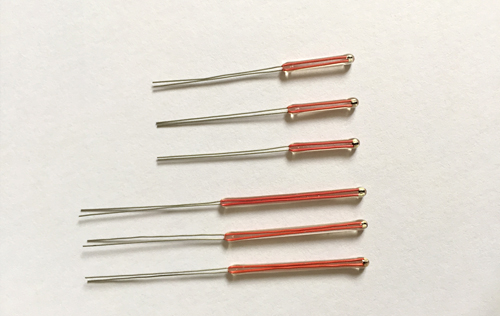

----------MF60 Series---------- |
![](image/D-60.jpg)
|
Features:
¡ö Glass-encapsulation provides High-level heat resistance
¡ö Proven long term Reliability and Stability
¡ö Glass-encapsulation provides extra moisture protection and interchangeability
|
Applications:
¡ö HVAC equipment, water heaters, microwave ovens, home appliances
¡ö Assembly into various probes of Temperature sensors
¡ö General Instrumentation applications |

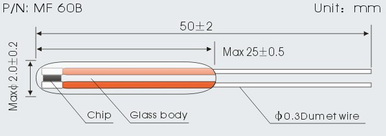

Dimensions: |
![](image/size 60B.jpg) |
Specification
illustration:
XX
¡ª
¢Ù
|
MF
¡ª
¢Ú
|
60
¡ª¡ª
¢Û
|
-397
¡ª
¢Ü
|
-103
¡ª
¢Ý
|
F
¡ª
¢Þ
|
Notes£º
¢Ù XIXI Co.
¢Ú NTC thermistor
¢Û Glass encapsulated type modle 60
¢Ü B value£¨B25/50¡æ£© Example: 397-- B 25/50¡æ: 3970
¢Ý Standard resistance value at 25¡æ£¨R25¡æ£©,Example£º103. R25¡æ is 10K¦¸
¢Þ R25¡æ interchangeability precision£º
F£¨±1%£©£»G£¨±2%£©£»H£¨±3%£©£»J£¨±5%£©£»K£¨±10%£©
|
Product
specification: |
specification |
R25¡æ
£¨KΩ£© |
B25/50¡æ
£¨K£© |
disspation constant
£¨mW/¡æ£© |
time constant
£¨S£© |
operation temperature range
£¨¡æ£© |
XXMF60 -347-202¡õ |
2 |
3470 |
0.80-1.2 typical in still air at 25¡æ |
6-12 typical in still air
|
-40¡«300 |
XXMF60 -327-347-502¡õ |
5 |
3270/3470 |
XXMF60 -347/390/395-103¡õ |
10 |
3470/3900/3950 |
XXMF60 -395-473¡õ |
47 |
3950 |
XXMF60 -395/400-503¡õ |
50 |
3950/4000 |
XXMF60 -405/420-104¡õ |
100 |
4050/4200 |
|
|
|
|
Note 1) Values above are for reference only. B value among 3200-4200K, and R 25¡æ among 1KΩ-230 KΩ can be custom designed.
Note 2) We will produce suitable temperature sensors according to the technical details you provide such as dimension, operating temperature, thermal time constant, precision, etc. |
