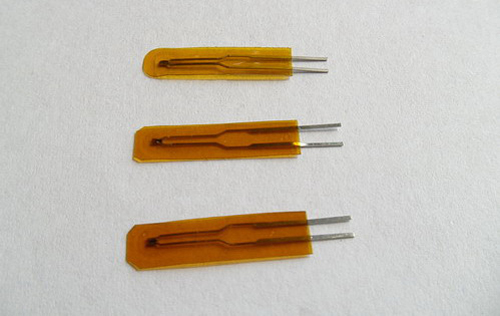

MF5A-6 Series ---------- |
![](image/5a-6newbig.jpg)
|
Features:
¡ö Polyimide thin- film Insulated with high
accuracy
¡ö Proven long term Stability and Reliability
¡ö High Sensitivity and Fast thermal response
¡ö Light touch solution with low cost and high durability
|
Applications:
¡ö Temperature sensing , control and compensation
¡ö Copying machines and multi-function printers (surface)
¡ö Battery packs, IT equipment, mobile devices, LCDs |

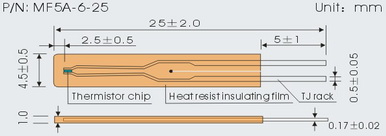

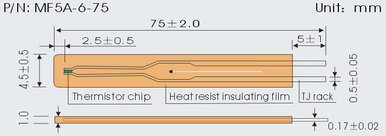

Dimensions: |
![](image/size 5a-6-75.jpg) |
Specification
illustration:
XX
—
¢Ù |
MF
—
¢Ú |
5A-6
——
¢Û |
-397
—
¢Ü |
-103
—
¢Ý |
F
—
¢Þ |
Notes£º
¢Ù XIXI Co.
¢Ú NTC thermistor
¢Û Polyimide thin- film Insulated type modle 5A-6
¢Ü B value£¨B25/50¡æ£© Example: 397-- B 25/50¡æ: 3970
¢Ý Standard resistance value at 25¡æ£¨R25¡æ£©,Example£º103. R25¡æ is 10KΩ
¢Þ R25¡æ interchangeability precision£º
F£¨±1%£©£»G£¨±2%£©£»H£¨±3%£©£»J£¨±5%£©£»K£¨±10%£© |
Product
specification: |
specification |
R25¡æ
£¨KΩ£© |
B25/50¡æ
£¨K£© |
disspation constant
£¨mW/¡æ£© |
time constant
£¨S£© |
operation temperature range
£¨¡æ£© |
XXMF5A-6 -347-202¡õ |
2 |
3470 |
0.75-1.5 typical in still air at 25¡æ |
3.5-6 typical in still air
|
-30¡«200 |
XXMF5A-6 -327-347-502¡õ |
5 |
3270/3470 |
XXMF5A-6-347/390/395-103¡õ |
10 |
3470/3900/3950 |
XXMF5A-6-395-473¡õ |
47 |
3950 |
XXMF5A-6-395/400-503¡õ |
50 |
3950/4000 |
XXMF5A-6-405/420-104¡õ |
100 |
4050/4200 |
|
|
|
|
Note 1) Values above are for reference only. B value among 3000-4500K, and R 25¡æ among 0.5KΩ-2 MΩcan be custom designed.
Note 2) We will produce suitable temperature sensors according to the technical details you provide such as dimension, operating temperature, thermal time constant, precision, etc. |
