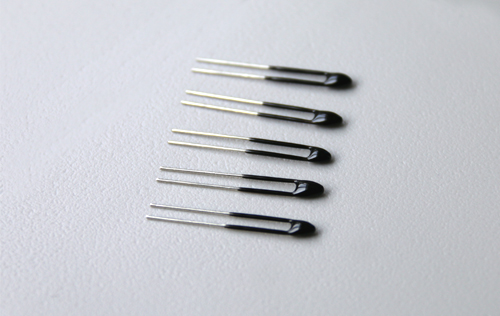

MF5A-2/3 series ---------- |
![](image/5a-2newbig.jpg)
|
Features:
¡ö Low cost , Small size
¡ö Long term Stability and Reliability ¡ö High
accuracy and Interchangeability
¡ö High Sensitivity and Fast thermal response ¡ö Thermally Conductive Epoxy coated
|
Applications:
¡ö Temperature sensing , control and compensation
¡ö Assembly into various probes of Temperature sensors
¡ö General Instrumentation applications |

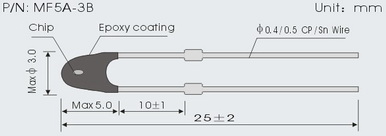

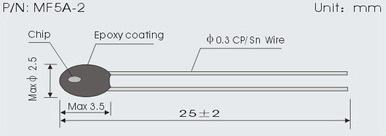

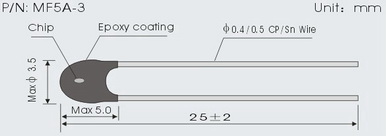

Dimensions: |
![](image/size 5a-3.jpg) ![](image/size 5a-3C.jpg)
|
Specification
illustration:
XX
¡ª
¢Ù
|
MF
¡ª
¢Ú
|
5A-2
¡ª¡ª
¢Û
|
-327
¡ª
¢Ü
|
-502
¡ª
¢Ý
|
F
¡ª
¢Þ
|
Notes£º
¢Ù XIXI Co.
¢Ú NTC thermistor
¢Û Epoxy coated type modle 5A-2 or 5A-3
¢Ü B value£¨B25/50¡æ£© Example: 327-- B 25/50¡æ: 3270
¢Ý Standard resistance value at 25¡æ£¨R25¡æ£©,Example£º502. R25¡æ is 5K¦¸
¢Þ R25¡æ interchangeability precision£º
F£¨¡À1%£©£»G£¨¡À2%£©£»H£¨¡À3%£©£»J£¨¡À5%£©£»K£¨¡À10%£©
|
Product
specification: |
specification
|
R25¡æ
£¨K¦¸£©
|
B25/50¡æ
£¨K£©
|
disspation constant
£¨mW/¡æ£©
|
time constant
£¨S£©
|
operation temperature range
£¨¡æ£©
|
XXMF5A-2 -347-202¡õ
|
2
|
3470 |
0.75-3.0 typical in still air at 25¡æ
|
1-1.5 typical in liquids
|
-30¡«125
|
XXMF5A-2 -327-347-502¡õ
|
5
|
3270/3470 |
XXMF5A-2-347/390/395-103¡õ
|
10
|
3470/3900/3950 |
XXMF5A-2-395-473¡õ
|
47
|
3950 |
XXMF5A-2-395/400-503¡õ
|
50
|
3950/4000 |
XXMF5A-2-405/420-104¡õ
|
100
|
4050/4200 |
|
|
|
|
Note 1) Values above are for reference only. B value among 3000-4500K, and R 25¡æ among 0.5KΩ-2 MΩcan be custom designed.
Note 2) We will produce suitable temperature sensors according to the technical details you provide such as dimension, operating temperature, thermal time constant, precision, etc. |
