Features:
¡ö Surface mountable, and excellent solderability with tin-plated electrodes

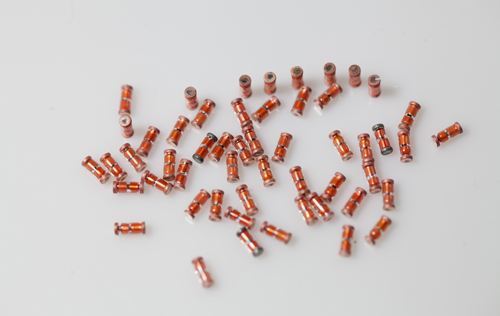

¡ö Glass-encapsulated package provides High-level heat resistance
¡ö Support Tape and reel packaging, and Suitable to be used in a narrower space
¡ö Applications requiring high reliability where general-purpose chip thermistors cannot meet
¡ö Overheat prevention for industrial motors
¡ö Temperature assurance for surface mount electric/electronic parts
|
XX
¡ª ¢Ù |
MF
¡ª ¢Ú |
59
¡ª¡ª ¢Û |
-327
¡ª ¢Ü |
-502
¡ª ¢Ý |
F
¡ª ¢Þ |
Notes£º
¢Ù XIXI Co.
¢Ú NTC thermistor

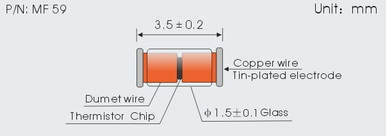

¢Û Glass encapsulated Surface mount type modle 59
¢Ü B value£¨B25/50¡æ£© Example: 327-- B 25/50¡æ: 3270
¢Ý Standard resistance value at 25¡æ£¨R25¡æ),Example£º502. R25¡æ is 5K¦¸
¢Þ R25¡æ interchangeability precision£º
F£¨±1%£©£»G£¨±2%£©£»H£¨±3%£©£»J£¨±5%£©£»K£¨±10%£©
specification |
R25¡æ £¨KΩ£© |
B25/50¡æ £¨K£© |
disspation constant £¨mW/¡æ£© |
time constant £¨S£© |
operation temperature range
£¨¡æ£© |
XXMF59 -347-202¡õ |
2 |
3470 | approx. 1.7 typical in still air at 25¡æ |
8-12 typical in still air |
-40¡«204 |
XXMF59 -327-347-502¡õ |
5 |
3270/3470 | |||
XXMF59 -347/390/395-103¡õ |
10 |
3470/3900/3950 | |||
XXMF59 -395-473¡õ |
47 |
3950 | |||
XXMF59 -395/400-503¡õ |
50 |
3950/4000 | |||
XXMF59 -405/420-104¡õ |
100 |
4050/4200 | |||
Note 2) We will produce suitable temperature sensors according to the technical details you provide such as dimension, operating temperature, thermal time constant, precision, etc.
