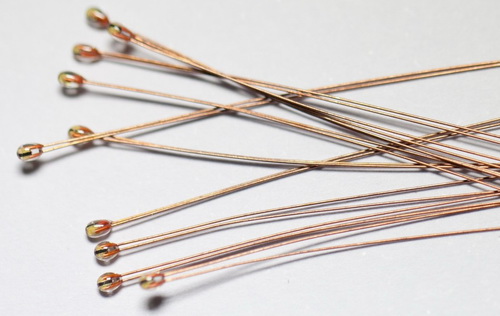

----------MF57 Series----------



Features:
Glass-sealed bead provides High-level heat resistance and high environmental Stability
Proven long term Reliability with low power requirement
Smaller size , High Sensitivity and Faster thermal response than conventional thermistors

Applications:
HVAC equipment, water heaters, microwave ovens, home appliances
Automotive (water, intake air, ambient, battery, motor and fuel) , hybrid vehicles, fuel cell vehicles, automotive electronics
Assembly into various probes of Temperature sensors
General Instrumentation applications

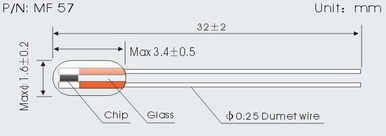

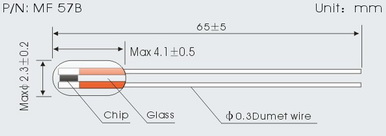

Dimensions:

Specification illustration:
XX

MF

57
——
-327

-502

F

Notes
XIXI Co.
NTC thermistor
Glass-sealed bead type modle 57
B valueB25/50棩  Example: 327-- B 25/50: 3270
Standard resistance value at 25棨R25棩,Example502. R25 is 5KΩ
R25 interchangeability precision
   F±1%G±2%H±3%J±5%K±10%

Product specification:
specification
R25
B25/50
K
disspation constant
mW/棩
time constant
S
operation temperature range
XXMF57 -347-202
2
3470
0.80-1.2 typical in still air at 25
6-12 typical in still air
-40300
XXMF57 -327-347-502
5
3270/3470
XXMF57-347/390/395-103
10
3470/3900/3950
XXMF57-395-473
47
3950
XXMF57-395/400-503
50
3950/4000
XXMF57-405/420-104
100
4050/4200

Note 1)  Values above are for reference only. B value among 3200-4200K, and R 25 among 1KΩ-230 KΩ can be custom designed.
Note 2)  We will produce suitable temperature sensors according to the technical details you provide such as dimension, operating temperature, thermal time constant, precision, etc.
