----------MF5A-4 Series----------



Features:
Low cost , Small size
Long term Stability and Reliability High accuracy and Interchangeability
High Sensitivity and Fast thermal response Thermally Conductive Epoxy coated

Applications:
Temperature sensing , control and compensation
Electronic thermometer, Medical equipment and patient monitoring
General Instrumentation applications

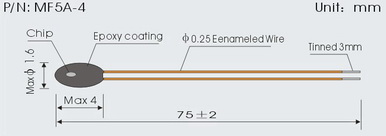

Dimensions:
Specification illustration:
XX

MF

5A-4
——
-327

-502

F

Notes
XIXI Co.
NTC thermistor
Epoxy coated type modle 5A-4
B valueB25/50棩  Example: 327-- B 25/50: 3270
Standard resistance value at 25棨R25棩,Example502. R25 is 5KΩ
R25 interchangeability precision
   F±1%G±2%H±3%J±5%K±10%

Product specification:
specification
R25
B25/50
K
disspation constant
mW/棩
time constant
S
operation temperature range
XXMF5A-4 -347-202
2
3470
0.75-3.0 typical in still air at 25
1-1.5 typical in liquids
-30125
XXMF5A-4 -327-347-502
5
3270/3470
XXMF5A-4-347/390/395-103
10
3470/3900/3950
XXMF5A-4-395-473
47
3950
XXMF5A-4-395/400-503
50
3950/4000
XXMF5A-4-405/420-104
100
4050/4200

Note 1)  Values above are for reference only. B value among 3000-4500K, and R 25 among 0.5KΩ-2 MΩcan be custom designed.
Note 2)  We will produce suitable temperature sensors according to the technical details you provide such as dimension, operating temperature, thermal time constant, precision, etc.
